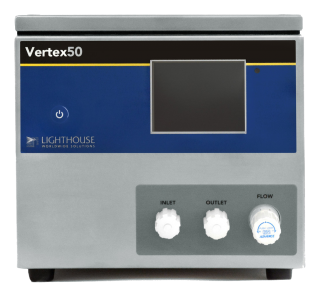

Lighthouse Vertex50 液体颗粒计数器 (50nm - 200nm)

Channel sizes: 50nm, 100nm, 150nm, 200nm

Flow rate: 100 mL per minute

Built-in 3.5” color touch screen display

Zero Count Level: ≤ 20 count/L

Sample Temperature: 50°F to 122°F (10°C to 50°C)

Sample Pressure: 20 PSI to 72 PSI (138 kPa to 496 kPa)

Ethernet, RS485 Modbus Serial, 4-20mA

Power: External Supply: Rated input 120-240V AC 50/60Hz, 0.7A - 1.4A. Rated Output: 24V DC, 5A

Dimensions: 9.0”(w) x 13.4”(d) x 8.4”(h) [22.9 x 34.0 x 21.3 cm]


316L stainless steel construction

NEMA style enclosure

Integrated manual flow control

Interfaces with existing building automation and facility management systems

Include: 24V power adapter, power cord (US/UK/EU/CN), 1.8m USB-RS485 serial cable with industrial connector, 25’ Ethernet cable with industrial connector, USB flash drive with Operators Manual, 2 x 10 foot sample inlet and outlet tubes (with flared tips and lock nuts), flow cell cleaning kit, calibration certificate and carrying case.

Details

Operating Manual

Datasheet
