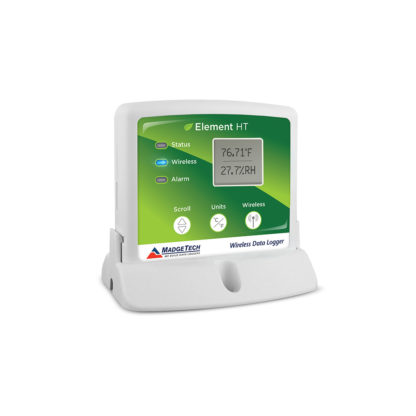

Madgetech ELEMENT HT 无线湿度和温度数据记录器 (-20 °C to +60 °C)
制造商: Madgetech Model: ELEMENT HT P/N: 901423-A7 - 报价要求
- 报价要求
- 联系
General:
Memory: 16,128 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250000
LED Indicators: Green, Blue & Red
Battery Life: 3 years typical at a 1 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing
Required Interface Package: RFC1000
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Temperature:
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (5 °C to 55 °C)
Humidity:
Humidity Sensor: Relative Humidity Sensor
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: ±3.0 %RH; 25 %RH to 75 %RH; +20 °C to +40 °C; Hysteresis Error 1 % typical, 3 % Maximum
Wireless:
RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
RF Baud Rate: 250000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical Outdoors Line of Sight: Up to 2,000 ft
Typical Indoors Line of Sight: Up to 500 ft
