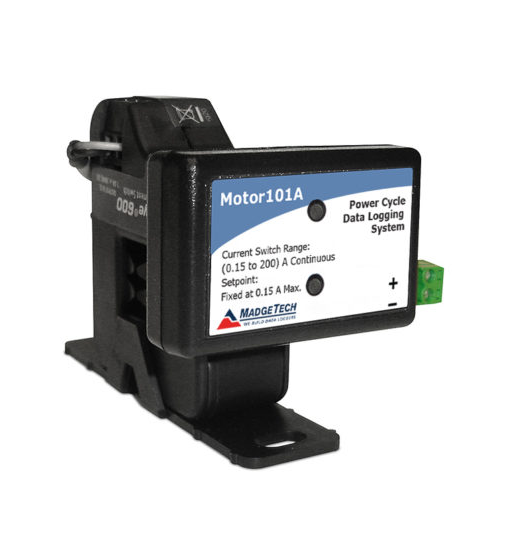

Madgetech Motor101A 电源循环数据记录器系统 (0.15 -200 Amps)

General:

Memory: 465,578 readings

Reading Rate: 4 Hz to 1 every 24 hours

Baud Rate: 115200

LED Indicators: Red & Green

Push-Button Start: Yes

Battery Life: 10 years typical

Material: ABS Plastic

Dimensions: Data Logger: 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm); Current Switch: 2.1 in x 3.5 in x 1.0 in (54 mm x 89 mm x 16 mm)

Operating Environment: -15 °C to +40 °C (+5 °F to +104 °F), 10 %RH to 90 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

State:

State Resolution: 1 second (reading rate dependent)

Amperage Range: 0.15 to 200 Amps

Trip Point: 0.15 A (150 mA) fixed (200 mA AC for 50 Hz operation)

Status Output: N.O.1.0 A at 30 VAC/DC

Housing: Split Core
