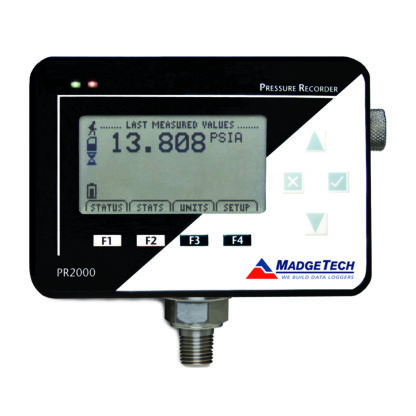

Madgetech PR2000-1000 压力数据记录器 (0-1000PSIA)

General:

Memory: 262,144 readings

Reading Rate: 1 reading every 2 seconds up to 1 reading every 24 hours

Baud Rate: 115200

Battery Life: 1 year battery life at 1 minute reading rate with display off, 30 days typical with continuous display use. Optional AC adapter available.

Material: Black anodized aluminum case/NPT Steel

Dimensions: 5.1 in x 4.8 in x 1.705 (130 mm x 122 mm x 43.3 mm)

Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

Pressure:

Pressure Sensor: Semiconductor (strain gauge)

Pressure Range: 0 - 1000 PSIA

Pressure Resolution: 0.05

Pressure Calibrated Accuracy: 2 %FSR, 0.25 % at +25 °C (+77 °F) Typical
