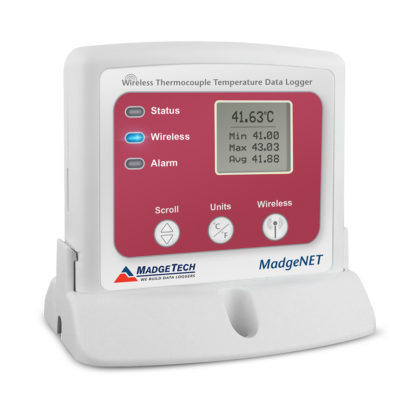

Madgetech RFTCTEMP2000A-TB 无线热电偶温度数据记录器 (-210 °C to +1300 °C; pluggable screw terminals)

General

Memory: 16,128 readings

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 250000

LED Indicators: Green, Blue & Red

Battery Life: 3 years typical at a 1 minute reading rate

Material: ABS plastic

Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only

IP Rating: IP22

Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: RFC1000

Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature:

External Temperature Sensor: Thermocouple types: J, K, T, E, R, S, B, N

External Temperature Range: -210 °C to +1300 °C (-410 °F to +2372 °F) (Probe Dependent)

External Temperature Resolution: 0.1 °C (0.18 °F) (Probe Dependent)

External Temperature Calibrated Accuracy: ±0.5 °C (± 0.9 °F) (Probe Dependent)

Internal Temperature Sensor: Internal Semiconductor

Wireless

RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.

Output Power: +0 dBm typical

Receiver Sensitivity: -95 dBm typical

Typical outdoors Line of sight: Up to 2000 ft

Typical Indoors line of sight: Up to 500 ft

Details

Datasheet
