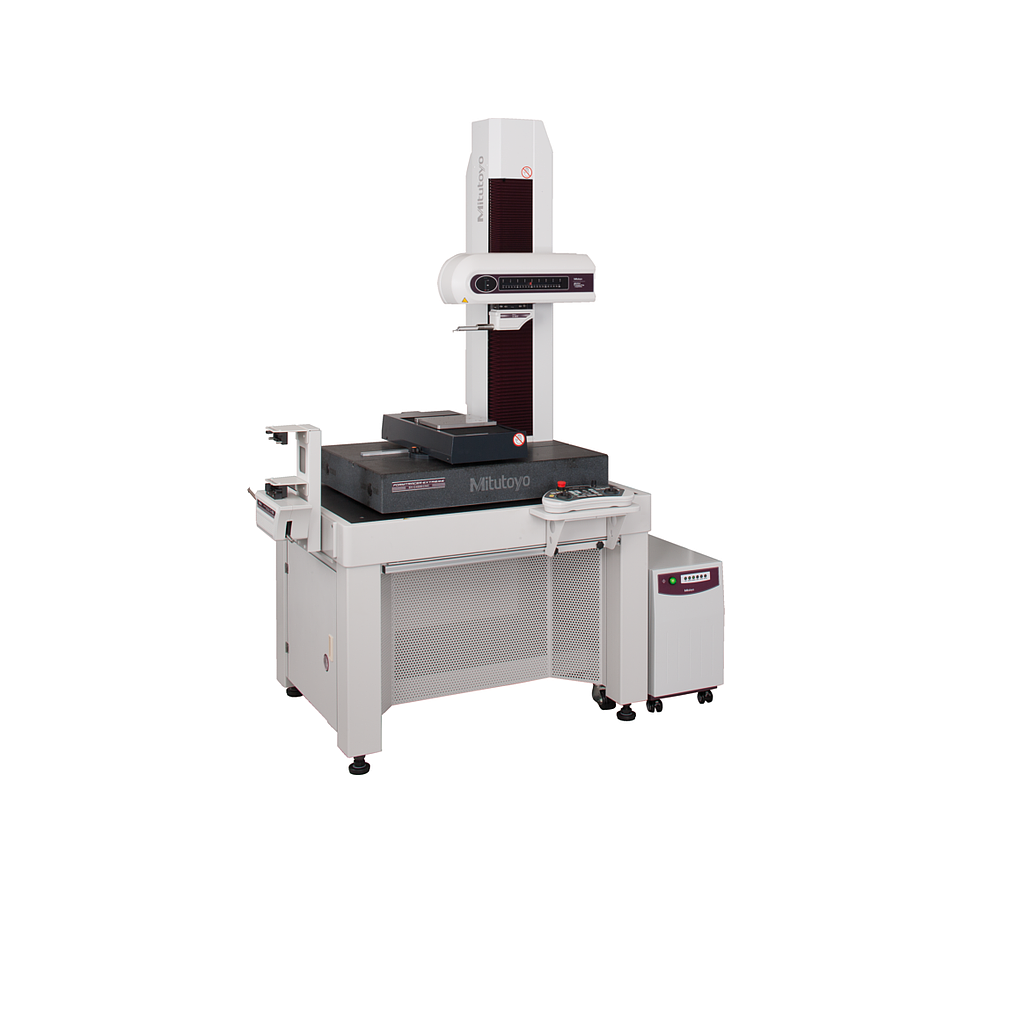

MITUTOYO SV-C4500CNC 数控表面粗糙度及轮廓测量系统 (X=200mm; Z2=500mm)

X1 axis (Drive unit)

Contour:

- Measuring range: 200 mm

- Resolution: 0.05 µm

- Scale type: Reflective-type linear encoder

- Straightness: 2 µm/200 mm

- Accuracy (20 °C): ±(0.8+4L/200) µm L: Measuring length (mm)

Surface roughness:

- Straightness: 0.5 µm/200 mm

Z1 axis (Detector)

Contour:

- Measuring range: 60 mm (±30 mm from the horizontal)

- Resolution: 0.02 µm

- Scale type: Arc

- Accuracy (20 °C): ±(0.8+|2H|/100) µm;  H: Measuring height from horizontal position (mm)

Surface roughness:

- Measuring range: 800 µm, 80 µm, 8 µm

- Resolution: 0.01 µm, 0.001 µm, 0.0001 µm

Z2 axis (Column)

Drive range: Specification is selectable from 300 mm or 500 mm.

Resolution: 0.05 µm
