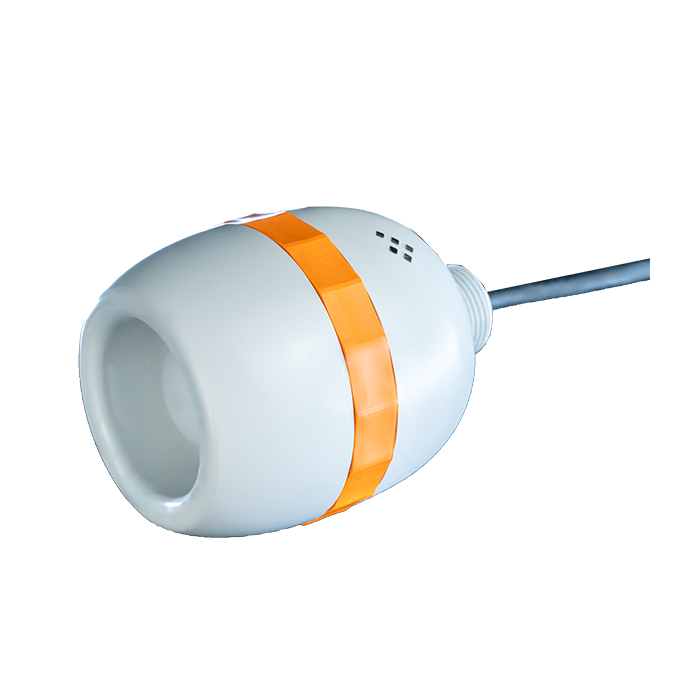

Pulsar measurement REFLECT™ 双线雷达传感器

Dimensions: Nominal 135 mm (H) x 102 mm (D) (5.3 in x 4.0 in)

Weight: Nominal 1.5 kg (3.3 lbs)

Frequency: V-band (63GHz)

Sensor Body Material: Valox

Mounting Connection:

Rear: ATEX/IECEx approved sensors only: 1-inch BSP with BReezTM adapter; cFMus approved sensors only: 1-inch stainless steel NPT with BReezTM adapter

Front: Optional, 1.5-inch BSP or 1.5-inch NPT

Enclosure Protection: IP68 / NEMA 6P

Vibration Protection: Fully Potted

Cable Lengths: Standard: 5 m, 10 m, 20 m, or 30 m (16.4 ft, 32.8 ft, 65.5 ft, or 98.4 ft)

Optional: 50 m, or 100 m (164 ft or 328 ft)

PERFORMANCE

Measurement Range: 8 m or 20 m (26.2 ft or 65.6 ft)

Technology FMCW

Beam Angle: 6°

Effective Beam Angle (using DATEM): 3°

Resolution: 1 mm (0.039 in)

Accuracy: 2 mm (0.079 in)

Repeatability: 1 mm (0.039 in)

Near Blanking: 75 mm (2.95 in) from drip shield

First Stable Measurement: Cold Boot = 10 seconds

Warm Boot = 5 seconds

Max Start-up Current: 20 mA

Current Consumption: 3.8-22mA, resolution 1uA

Input Voltage Range: 12 - 28 V DC

ENVIRONMENTAL

Ambient Operating Temperature: -40 °C to +80 °C (-40 °F to +176 °F)

Humidity: 0 to 99% (non-condensing)

Process Connection Temperature: -40 °C to +80 °C (-40 °F to +176 °F)

Process Pressure: -1 to +3 bar
