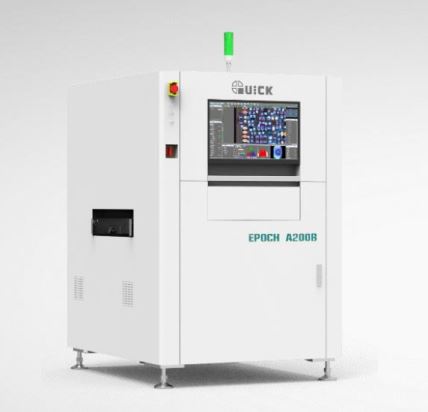

QUICK EPOCH A200B SMT和焊节AOI (320mm/S- 570mm/S)

Inspected PCB: Post wave soldering, pre/post selective soldering, and wave soldering final inspection process

Optical imaging system:

Camera: 5 MP/12MP high-speed camera

Light source: Multi-angle high white light

Optical resolution: 10μm 15μm 20μm

Inspection speed: Scan speed of 320mm/S Scan speed of 430mm/S Scan speed of 570mm/S

Programming mode: Manual programming, CAD data import, AI programming

Defect inspection:

Component defect Deviation, missing parts, skew, tombstoning, inverted, overturned, wrong parts, damage, polarity

Soldering joint defect Icicle, hole, solder bead, solder pad with less/more solder, bridging, warping, gold finger pollution/scratches

X-Y-Z axis control system: High-precision ball screw drive

X-Y-Z axis control accuracy: 10 μm

PCB carrier size: 50×50mm(Min)~ 470×510mm(Max)

PCB curvature: < 5mm or 2% of PCB diagonal length

PCB measurable thickness: 0.6-5 mm

PCB conveyor height: 880-920 mm

PCB flow direction: Left in and right out, right in and left out (factory setting)

Conveyor loading weight: 25 kg

Conveyor width adjustment/conveying: Automatic width adjustment, belt conveying

Height limit of passable component:

Top: 200 mm

Bottom: 28 mm

Side: 3 mm

Weight: About 900kg

Machine sizes: 1000*1600*1650mm

Power requirements: 200-240 V, single phase, 50/60 Hz, 3 kVA

Air source: 5-6 bar

Machine safety: Meet CE standards

Software :Offline programming software, maintenance station & SPC management system (optional), deep learning asystem (optional), barcode system (optional)
