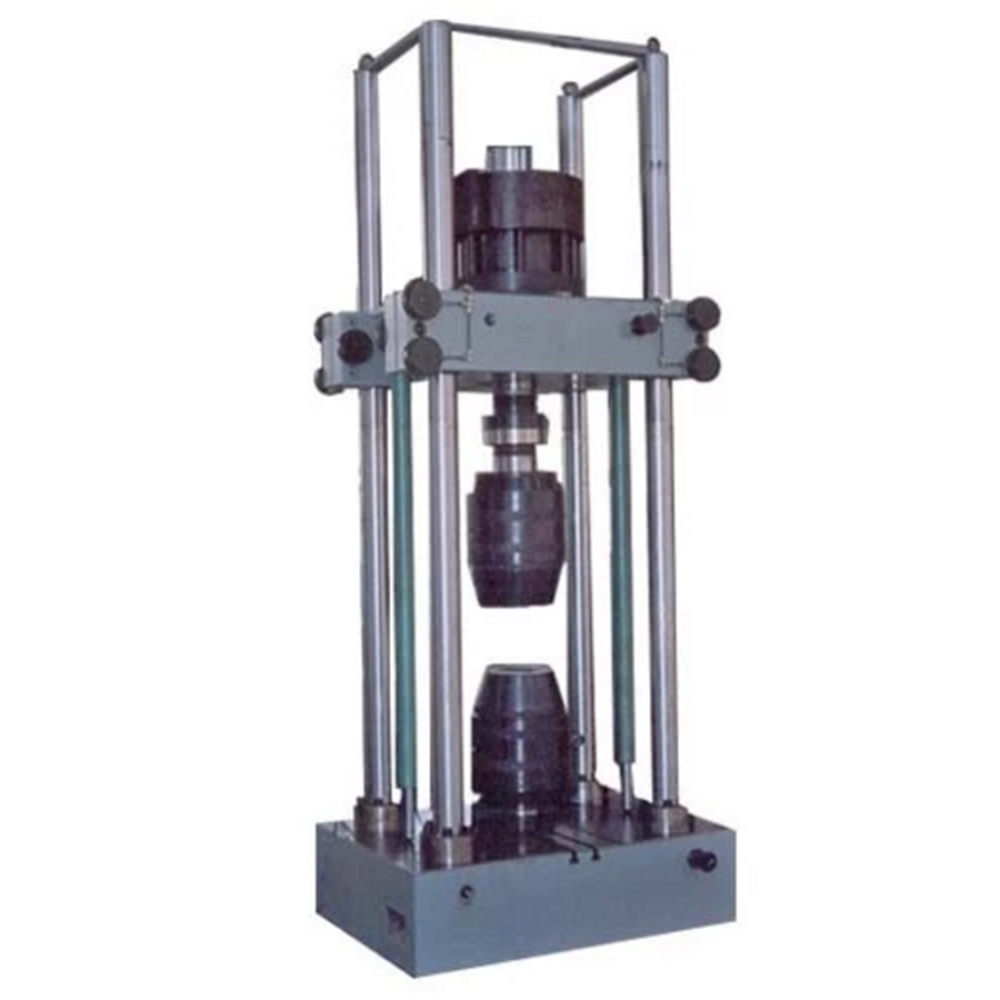

Samyon SYS-1000 疲劳试验拉伸强度试验机价格 (1000kN)

Product Application

Electro-hydraulic servo dynamic and static universal testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth tests and other mechanics tests for various kinds of materials, and it widely used in the fields of aviation and aerospace, ship-making and military industries.

Parameter:

Max. force: 1000kN

Indication accuracy: Within 2%-100%, each point is ±1.0%

Displacement accuracy: ±0.5%FS

Frequency Range(Hz): 0.01-50 Import controller 0.01-100

Number of columns: 4

Hydraulic forced Maximum distance between hydraulic forced grips(mm): 1200

Effective distance between columns(mm): 850*500

Column diameter(mm): 120

Actuator rod diameter / plug diameter(mm): 190/360

Pump station total flow (L/min): 220

Pump station pressure(Mpa): 21

Pump station total power(kW): 90

Power supply: 380V, AC

Details
