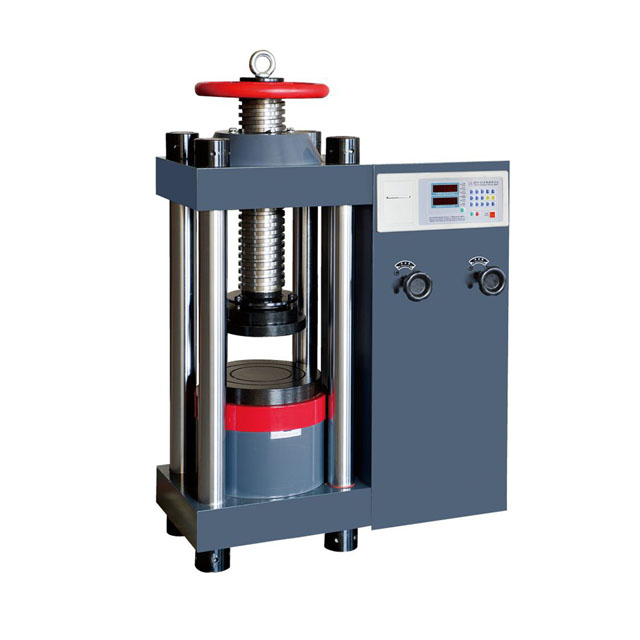

Samyon SYS-2000 混凝土抗压强度试验机和抗压试验机 (2000kN)

Main Function and Usage

1. It is mainly used in the testing of compression strength of the concrete.

2. Control Method of Testing Rate: Manual Control

Main Specifications and Technical Parameter

Maximum Testing Force: 2000kN

Measure Range of Testing Force: 4%~100%FS

Relative Accuracy of Value Display of Testing Force: ≤±1%

Adjustment method of Lead Screw: Manual

Top and Bottom Pressure Plate Dimension (mm)): Φ225, Φ300

Max.Space of Top and Bottom Pressure Plate(mm): 320

Max.Piston Stroke(mm): 30

Piston Diameter(mm): Φ250

Rated Pressure of the Hydraulic Pump(Amp): 40

Source Power(kW): Three phase 0.75

Overall Dimension(L*W*H)(mm): 800×500×1200

Weight (kg): 750
