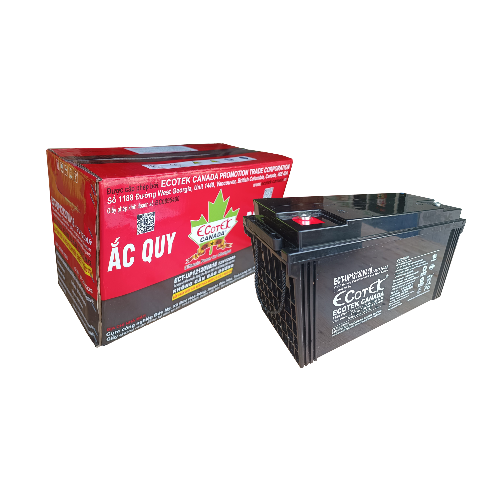

Santak ECT-UP12120VA18 Ecotek 电池 (12V, 120Ah)

Nominal Voltage(V): 12V

Nominal Capacity

20 hour rate (10A to 10.80V) :  100Ah

10 hour rate (17A to 10.20V):  85Ah

5 hour rate (60A to 9.60V) : 60Ah

Weight: Approx. 31.3 kg

Internal Resistance (at 1KHz): Approx. 4mΩ

Maximum Discharge Current for 5 seconds: 1200A

Design life: 10-12 years

Case Material: ABS - Flame retardant rating of UL94 HB

Option: UL94 V-0

Terminal: F18

Charging Methods at 25°C (77°F)

Cycle use:

Charging Voltage: 14.4 to 15.0V

Coefficient -5.0mV/ C/cell

Maximum Charging Current: 30A

Standby use:

Float Charging Voltage: 13.50 to 13.80V

Coefficient -3.0mV/ C/cell

Operating Temperature Range

Charge: -15°C(5°F) to 40°C(104°F)

Discharge: -15°C(5°F) to 50°C(122°F)

Storage: -15°C(5°F) to 40°C(104°F)

Charge Retention (shelf life) at 20°C (68°F)

1 month: 98%

3 month: 94%

6 month: 85%
