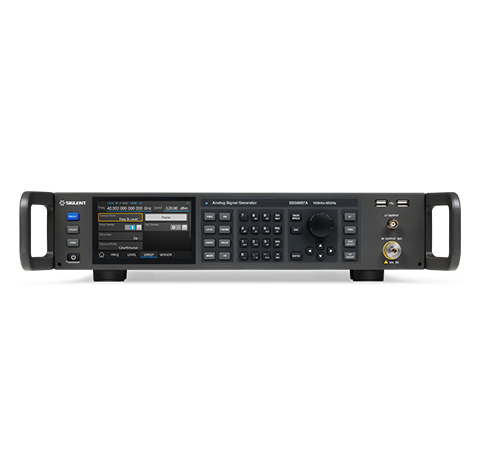

SIGLENT SSG6085A 微波模拟信号发生器 (100 kHz-20 GHz)

Frequency Range: CW MODE, 100 kHz-20 GHz

Level setting range: -130dBm to +24 dBm

Frequency Resolution: 0.01 Hz

Amplitude Resolution: 0.01 dB

Level error: ≤ 0.7 dB(typ.)

Phase noise: -135 dBc/Hz @1 GHz, offset 20 kHz (typ.)

Standard: AM Modulation, step attenuator (0 to 110dB), OCXO

Option: Pulse modulation (SSG6080A-PU), pulse train generator (SSG6080A-PT), rack mount kit (SSG6000A-RMK), USB-GPIB adapter(USB-GPIB), Upgrade 13.6 GHz to 20GHz(SSG6080A-F85)

Display: 5 inch capacitance touch screen, RGB (800*480)
