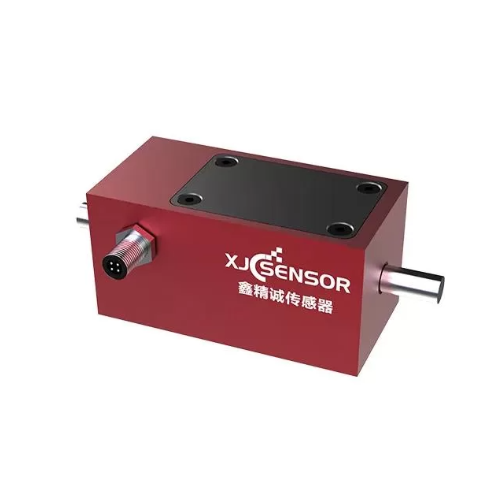

XJCSENSOR X-DT-1002 动态扭矩传感器 (500N.m)

Output sensitivity: 0.5-1.0mV/V

Max rotate speed: 500r/min

Non-linearity: ≤±0.2%F.S.

Repeatability: ≤±0.1%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~60°C

Compensated temp range: -10~40°C

Insulation resistance: ≥2000MΩ/50VDC

Recommended excitation voltage: 5-10V

Limit load: 200%F.S.

Cable size: φ4x2m

Protection class: IP64

Temp effect on output: ≤±0.2%F.S./10℃

Temp effect on zero: ≤±0.2%F.S./10℃

Cable Connection: Ex+: Brown/ Red; Ex-: Black; Sig+: Green; Sig-: White
