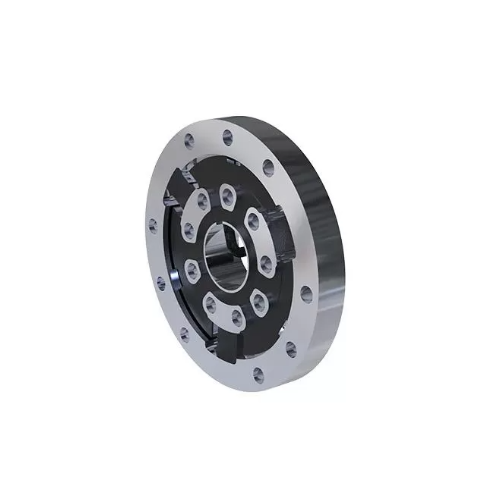

XJCSENSOR X-ST10 接头扭矩传感器 (100N.m)
制造商: XJCSENSOR Model: X-ST10 - 报价要求
- 报价要求
- 联系
Non-linearity: ≤0.5%F.S.
Repeatability: ≤1%F.S.
Zero balance: ±2%F.S.
Rated output: 1.5V-3V(M+)1.5V-0V(M-)
Temp effect on output: 0.2%F.S./10°C
Temp effect on zero: 0.2%F.S./10°C
Insalution: ≥2000MΩ/50VDC
Operating voltage: 24VDC
Compensated temp range: -10~40°C
Operating temp range: -20~80°C
Limit load: 200%F.S.
Breaking load: 300%F.S.
Protection class: IP64
Torional rigidity: 80(KNm/rad)
Cable size: φ2*1m
