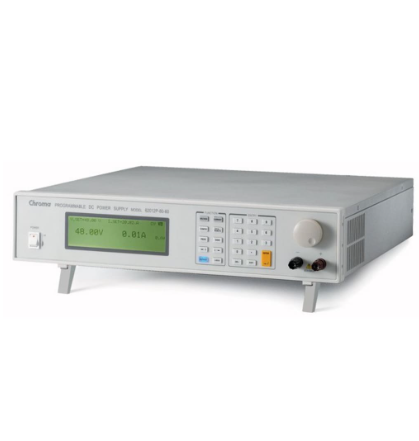

CHROMA 62006P-100-25 可编程直流电源 (100VDC/25A/600W)

Output Ratings

Output Voltage: 0~100V

Output Current: 0~25A

Output Power: 600W

Line Regulation

Voltage: 0.01%+6mV

Current: 0.01%+5mA

Load Regulation

Voltage: 0.01%+10mV

Current: 0.01%+5mA

Voltage Measurement

Range: 20V/100V

Accuracy: 0.05% + 0.05%F.S

Current Measurement

Range: 5A/25A

Accuracy: 0.1% + 0.2%F.S

Output Noise (0 ~ 20MHz)

Voltage Ripple (P-P): 85 mV

Voltage Ripple (rms): 10 mV

Current Ripple (rms): 10 mA

OVP Adjustment Range: 110% of Vset to 110% of Vmax

Slew Rate Range

Voltage: 0.001V - 10V/ms

Current: 0.001A - 1A/ms

Programming Response Time (Typical)

Rise Time (Full & No Load): 10 ms

Fall Time: 300 ms (max)

Efficiency: 0.75

Drift (8 hours)

Voltage: 0.02% of Vmax

Current: 0.04% of Imax

Temperature Coefficient

Voltage: 0.02% of Vmax/˚C

Current: 0.04% of Imax

Transient Response Time: 3 mS

10 % step change: 180 mV

Voltage limit @ Series Mode:500V

Operating Temperature:  0~40˚C

Dimension ( H x W x D): 89 x 430 x 425 mm / 3.5 x 16.93 x 16.73 inch

Weight: 12.1 kg / 26.65 lbs
